TriXon 4500 og 4800

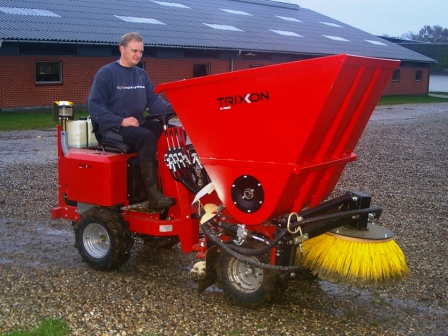

The thoroughly professional articulated sweeping, litter and scraping machine. 100% Danish-made from the best components, thus guaranteeing long life and safe operation.
TriXon is fully hydraulic and equipped with:
- 3-cylinder, 18 hp water cooled diesel engine
- Fully hydraulic functions - dual hydraulic pumps
- Articulated with features on the rear wheel right / left styring

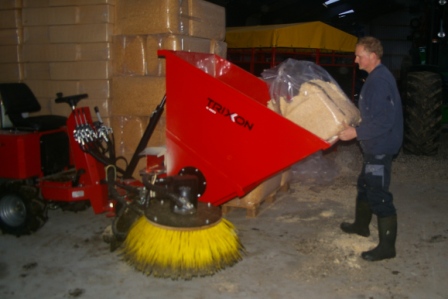

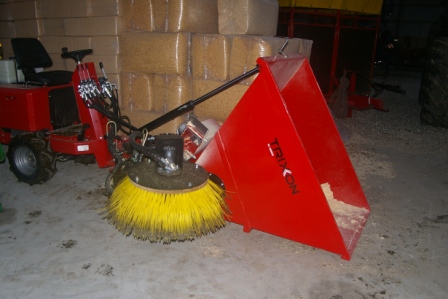

- Selvlæssende litter box with dosing auger

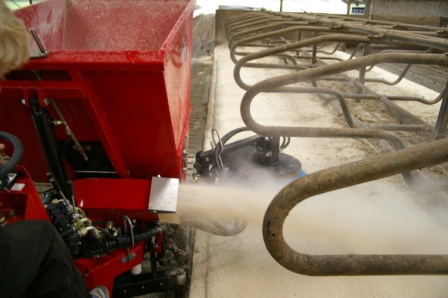

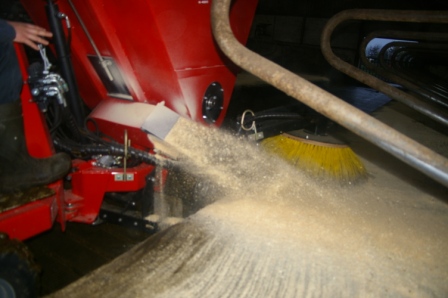

- Strong, durable, adjustable fan that can throw and distributes granulated material well and evenly in the booths
Optional TriXon can be supplied with:
- Mid-mounted 3-section hydraulic Height adjustable slat scraper, width 110 cm or 140 cm

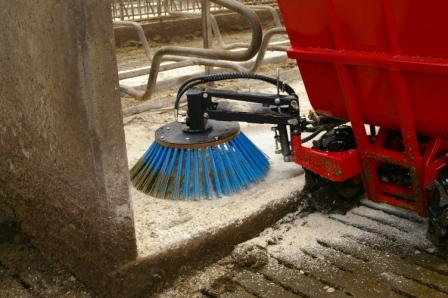

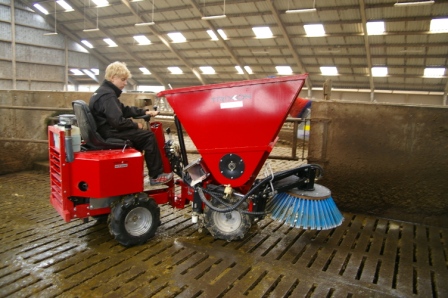

- Vertikal and sideways pivoting nylon kopbørste ø 80 cm for the cleaning of cubicles at a height of up to 30 cm.
- Fuldhydraulisk wheel drive
Machine specifications | TriXon 4500 | TriXon 4800 |
|---|---|---|
Wheel width front | 940 mm | |
Wheel width back | 930 mm | |
Length without brush | 2750 mm | |
Længde with brush | 3000 mm | |
Width without brush | 940 mm | 1140 mm |
Width with brush | 1160 mm | 1360 mm |
Height | 1710 mm | |
Height inclusive large box | 1750 mm | |
Content of box | 630 ltr. | 770 ltr. |
Content with larger box | 830 ltr. | 1020 ltr. |
Further technical informations Brochure TriXon
Read also: Article (Dutch language)
